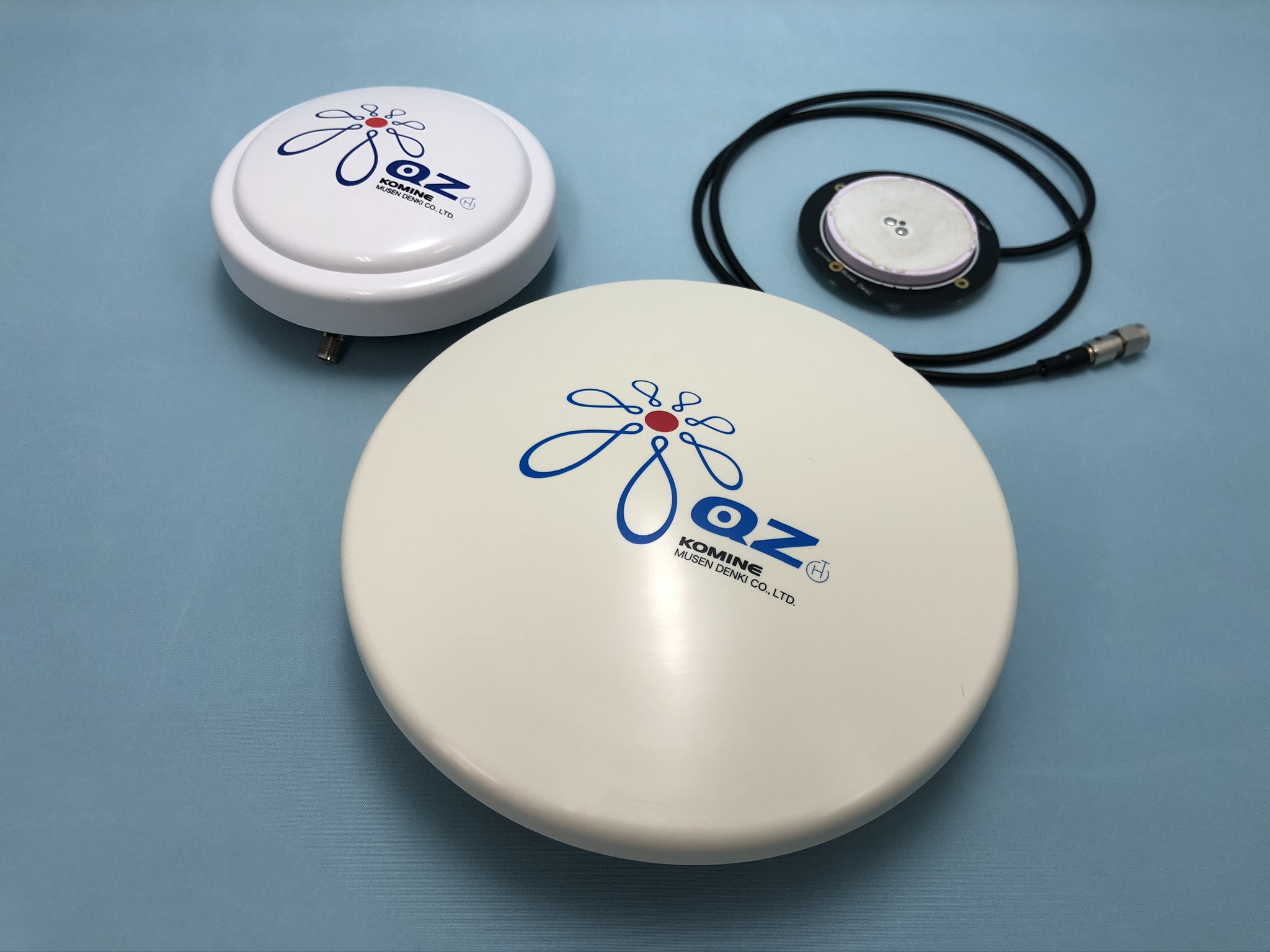

High-performance multi-frequency compatible GNSS antenna
■Promotion Movie
■Feature
▾Comprehensive GNSS support, including GPS, QZSS, GLONASS, Beidou, and Galileo
▾Precision satellite tracking without groundplane
▾Compact and light weight
▾Waterproof(JIS C 0920 IP67)
▾RoHS
■QZSS Series Line Up
▾Supported Satellite List
| Model | GPS/QZSS | QZSS | GLONASS | Galileo | BeiDou | SBAS | ||||||||||
| L1 | L2 | L5 | L6 | L1 | L2 | L3 | E1 | E5a | E5b | E6 | B1 | B2a | B2I | B3 | L1 | |
| QZG1aD | 〇 | 〇 | 〇 | 〇 | 〇 | |||||||||||
| QZG12aQ | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | |||||||
| QZG12fQ | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | |||||||
| QZG1256fQ | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 |
| QZG1256gO | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 |
|

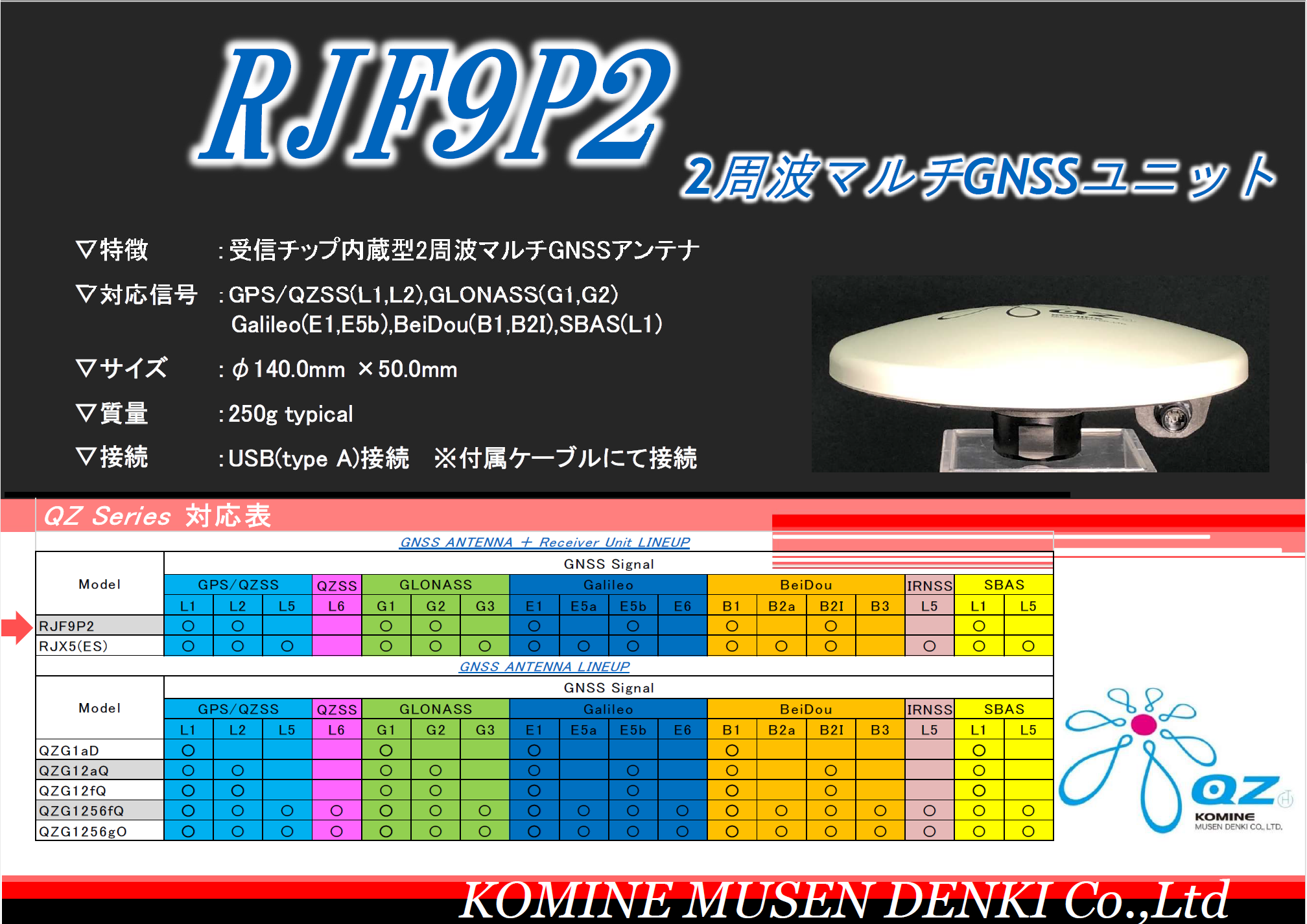

RJF9P2 |
〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 |
〇 |
|||||||
⇑Click Model Name if you need catalogue.
■Option
▾Cables
